PS Magazine - Preventive Maintenance Monthly - Every M151 Reference

The PS Magazine - Preventive Maintenance Monthly.

Listed below in chronological order. You can see the various upgrades and little improvements to the M151 Series vehicles.

NOTE: Remember some of these repairs or improvements have long been done to your M151 so keep that in mind when you read through here.

NOTE: IF THE PICTURES ARE TO SMALL - RIGHT CLICK YOUR MOUSE AND "OPEN IMAGE IN NEW TAB" YOU W

Show More
Issue 109 December 1961
Issue - 114 - May - 1962
Issue - 114 - May - 1962
Issue 116 July 1962
Issue 116 July 1962
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 122 - January - 1963
Issue - 124 - March - 1963
Issue - 126 - March - 1963
Show More

Replacing Rear Bushings

M151 or M151A2 - The entire A- Arm needs to be removed from the vehicle, and put on a work surface. Trying to do this while on the vehicle is a waste of your time. The old bushings will need to be cut out, they can not be pushed out, don't try . Again trying to push them out is a waste of your time. Below are methods used by myself and others that have been the least path of resistance.

Engine Maintenance & Related

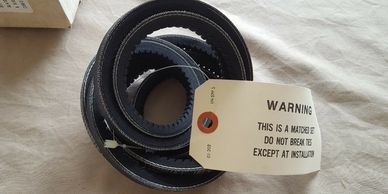

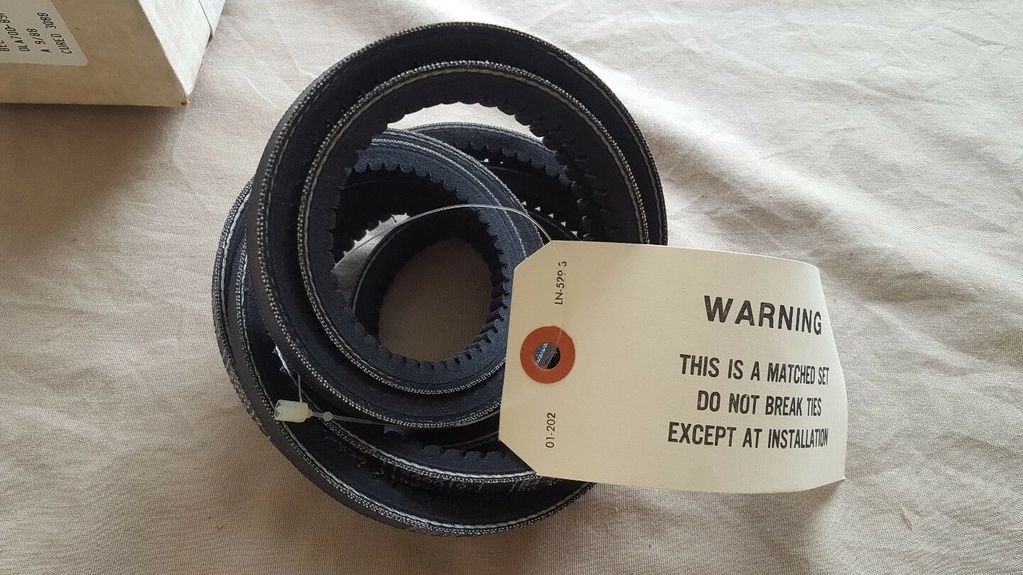

M151 & M151A1 25 Amp 2-Belt Set

NSN: 3030-00-833-1297

Ord: MS51065-33-2

Civilian:

Gates 7330   -   Dayco 15340   -   Goodyear 15361

M151A1 (very late) and M151A2 60 Amp 3-Belt Set

NSN: 3030-00-832-5671

Ord: 11599020-2

Civilian:

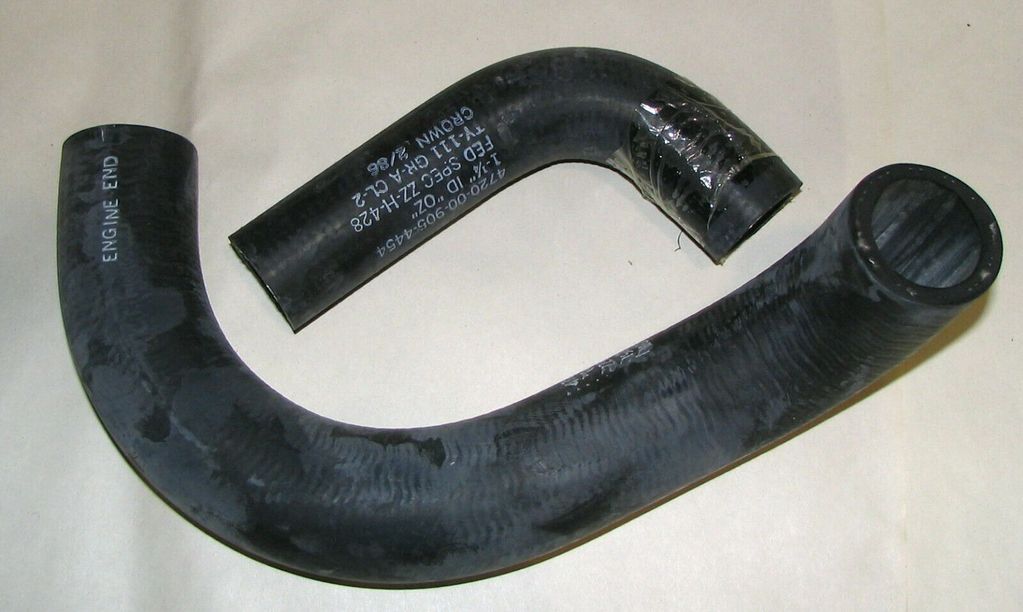

M151, M151A1 & M151A2 - 2 Hose Set

Top

NSN: 4720-00-905-4454

Ord: 8754815

Civilian:

NAPA 7446

Gates 20661

Bottom

NSN: 4720-00-678-4645

Ord:  8754580

Civilian:

NAPA 708

Gates 20230

Be aware these still may need trimmed to fit  like original

M151, M151A1, M151A2 Radiator Cap 7 PSI

NSN: 2930-00-720-2677

ORD: 1218048

MS35840-1

Civilian:

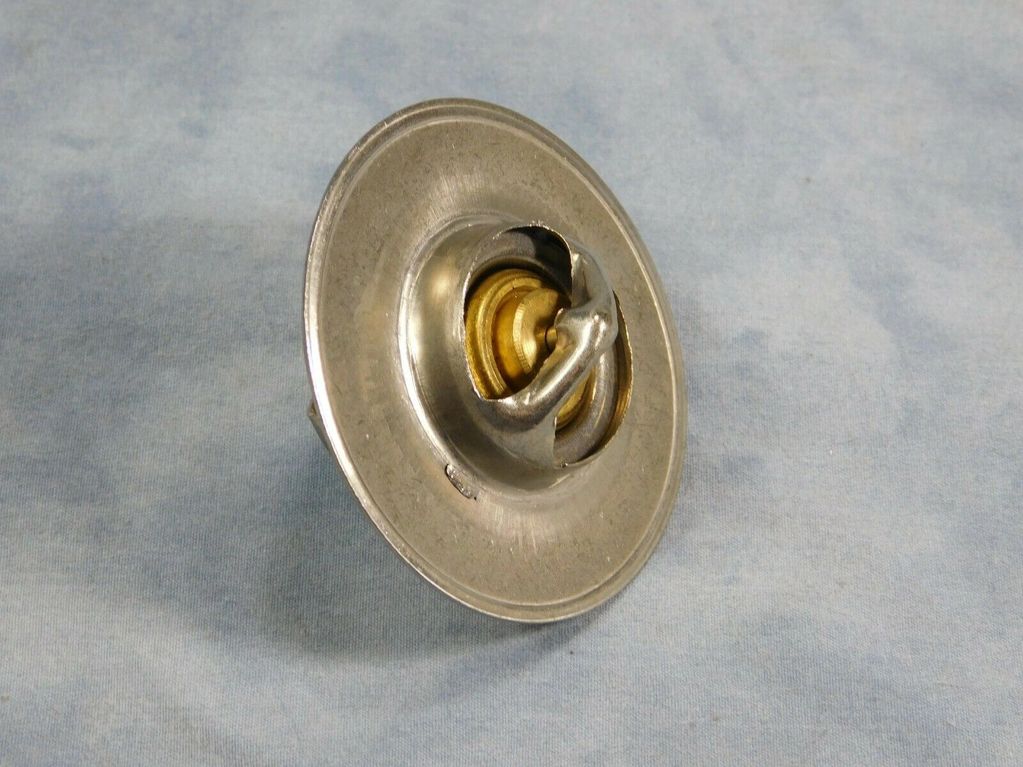

M151, M151A1 & M151A2 - Thermostat

NSN: 6620-00-651-9523

NSN: 6685-00-651-9523

Ord: 7998568

Ord: 3043320

Civilian:

STANT - S370H
STANT - 13078
NAPA - THOMPSON 191
STANDARD - THOMPSON - W191
BRIDGEPORT - 370-180
DOLE - DVN23H
EDELMAN - E114-180
GATES - 5538
DELCO - HARRISON - 148P
IDEAL - 30038
AUTOSTAT - FULTON - ROBERTSHAW - 370-180

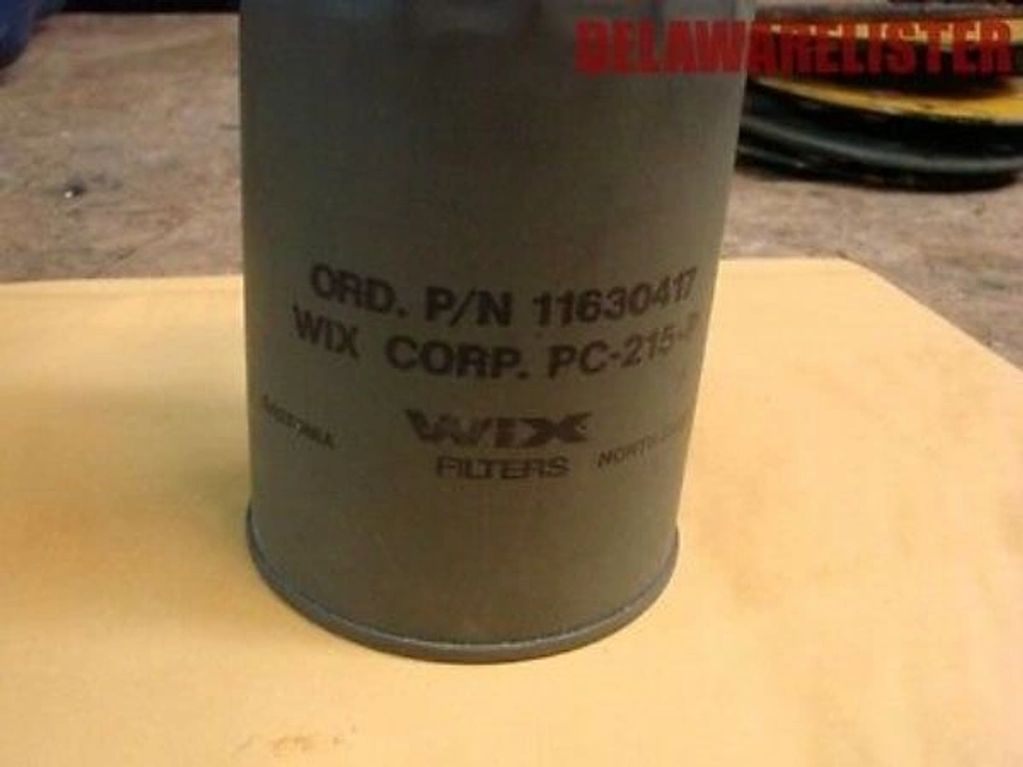

M151, M151A1 & M151A2 - Oil Filter

NSN: 2940-00-832-6054

NSN: 6685-00-651-9523

Ord: 7038761

Ord: 11630417

Civilian: Wix 51515 / Napa Gold 1515 / Fram PH8A / Pennzoil PZ-1 / WIX 51515

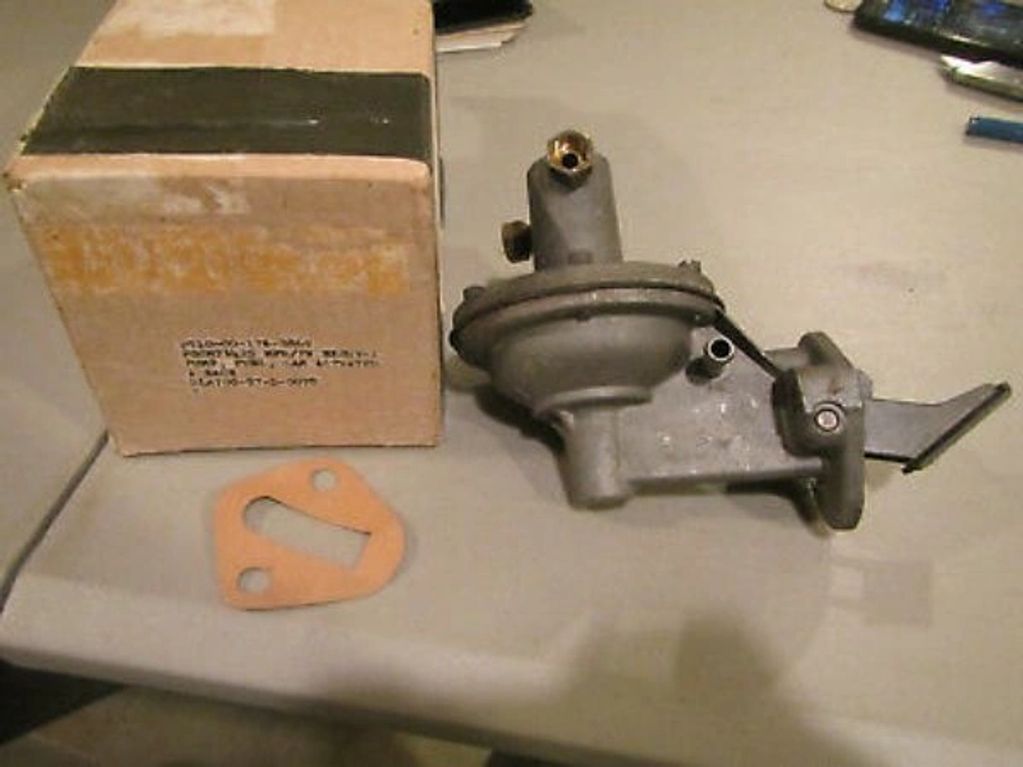

M151A2 - Fuel Pump

NSN: 2940-00-832-6054

NSN: 6685-00-651-9523

Ord: 7038761

Ord: 11630417

Civilian:  Airtex 60577 Works, but one connection is wrong and will need an adapter also points 45 degrees off, and does not have vent. All that being said it is a good cheap replacement just not exact.

Show More

Wiring Diagrams & Information

Front Wiring Harness (25 Amp System) Version #1

Front Wiring Harness (25 Amp System) Version #1

Front Wiring Harness (60 Amp System) Version #1

Front Wiring Harness (25 Amp System) Version #1

Rear Wiring Harness (25 Amp System) Version #1

Rear Wiring Harness (60 Amp System) Version #1

Front Wiring Harness (25 Amp System) Version #1

Wiring Harness (25 Amp System) Version #2

Wiring Harness (60 Amp System) Version #2

Future

Number Chart for wire bands

Number Chart for wire bands

Battery Box

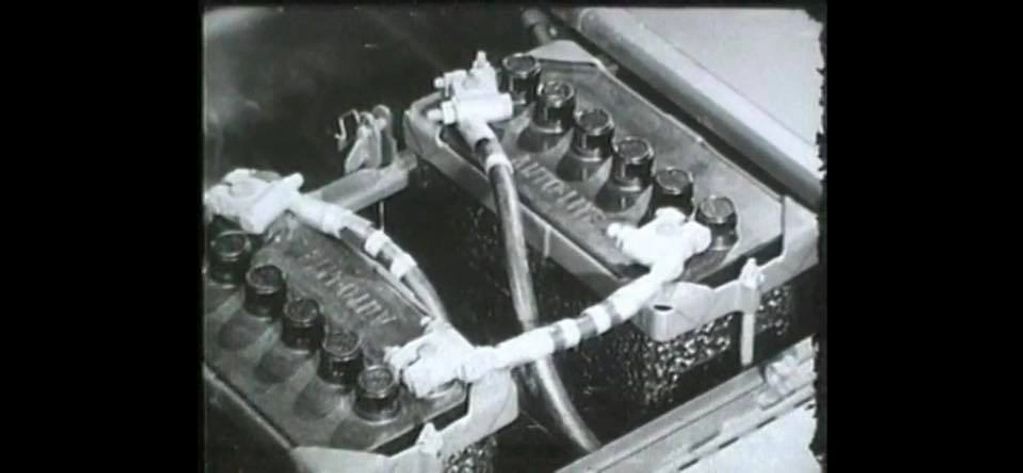

Original USGI battery set up early 1960s

Picture courtesy of Joe Eubanks.

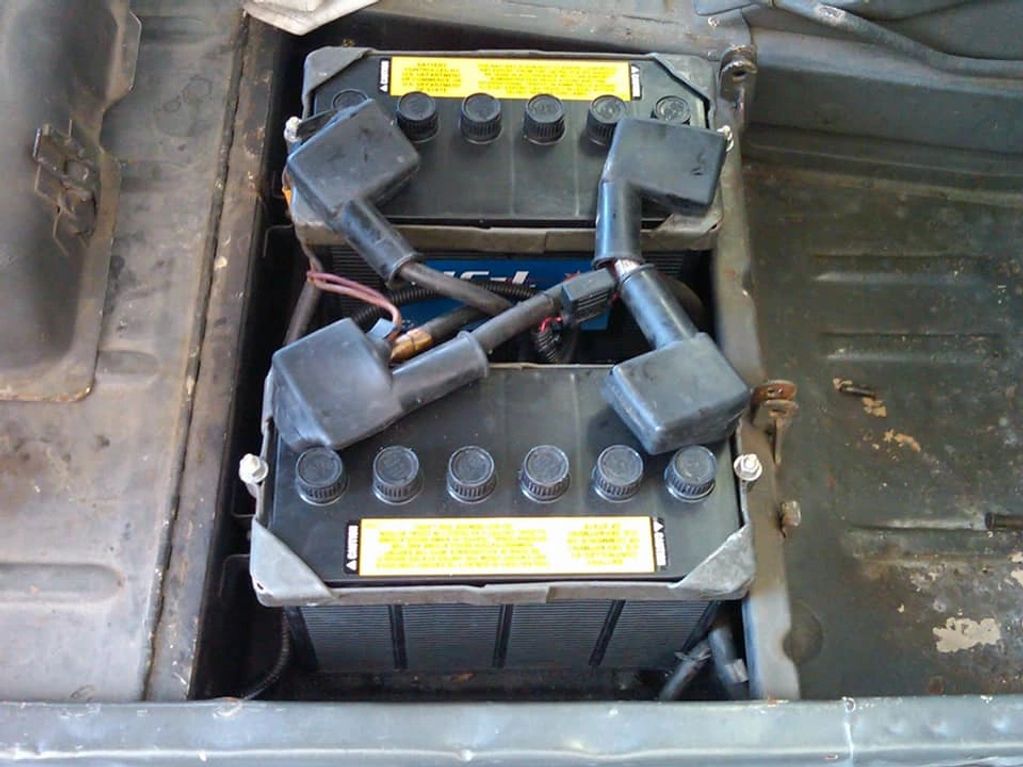

Correct USGI  2HN batteries, cables incorrectly installed. Jumper should be towards back of battery box / vehicle.

Picture courtesy of Joe Eubanks.

Civilan replacement:

22NF

51R

Neither of these are a direct replacements and both fit the original holders loose. But these are as close as you will find.

Empty battery compartment no tray after sandblasting.

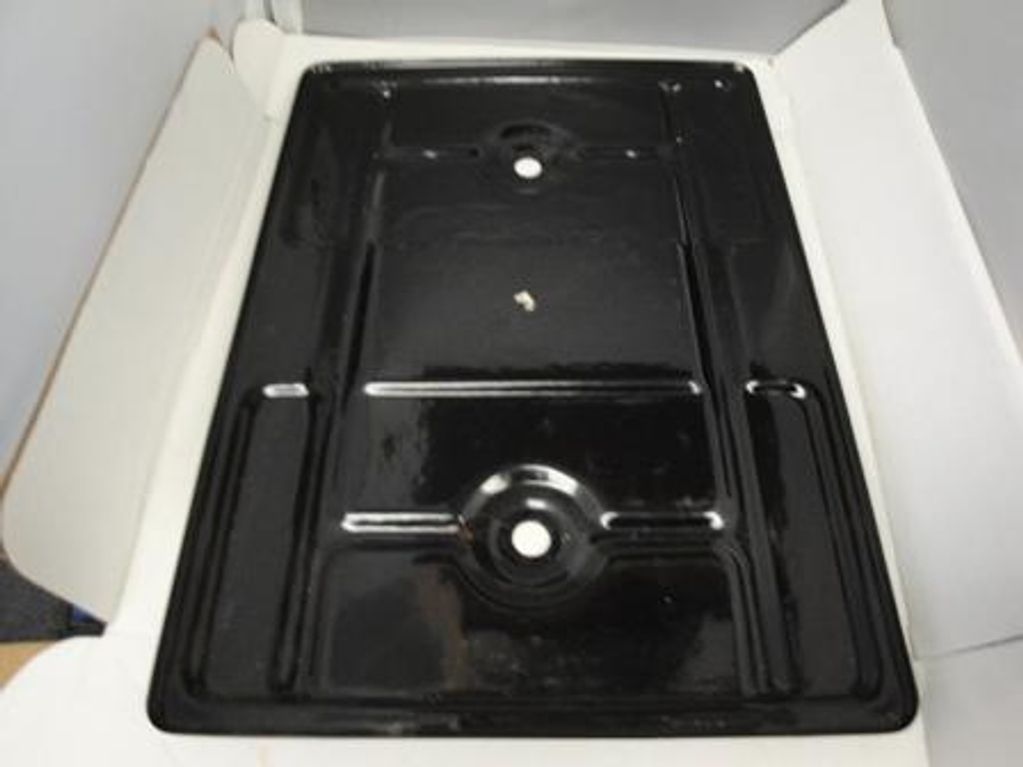

Battery Tray

NSN:

ORD: 8754760

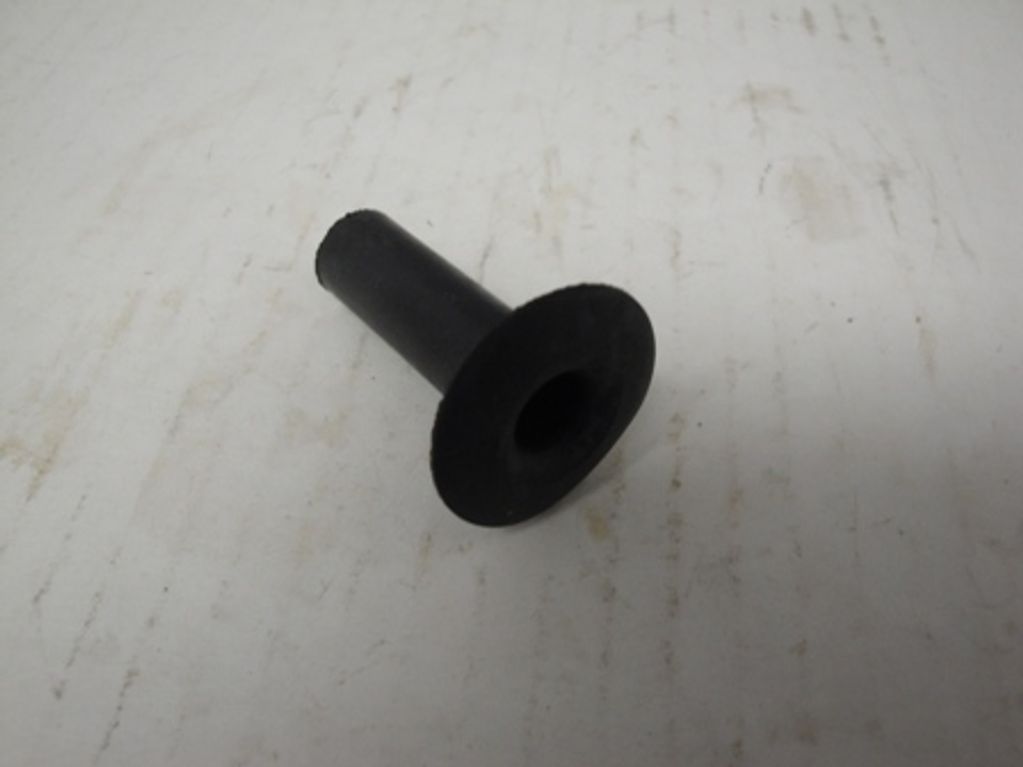

Battery Tray Drain Tube 2 required, Inserted in Battery tray above.

NSN:

ORD: 8754761

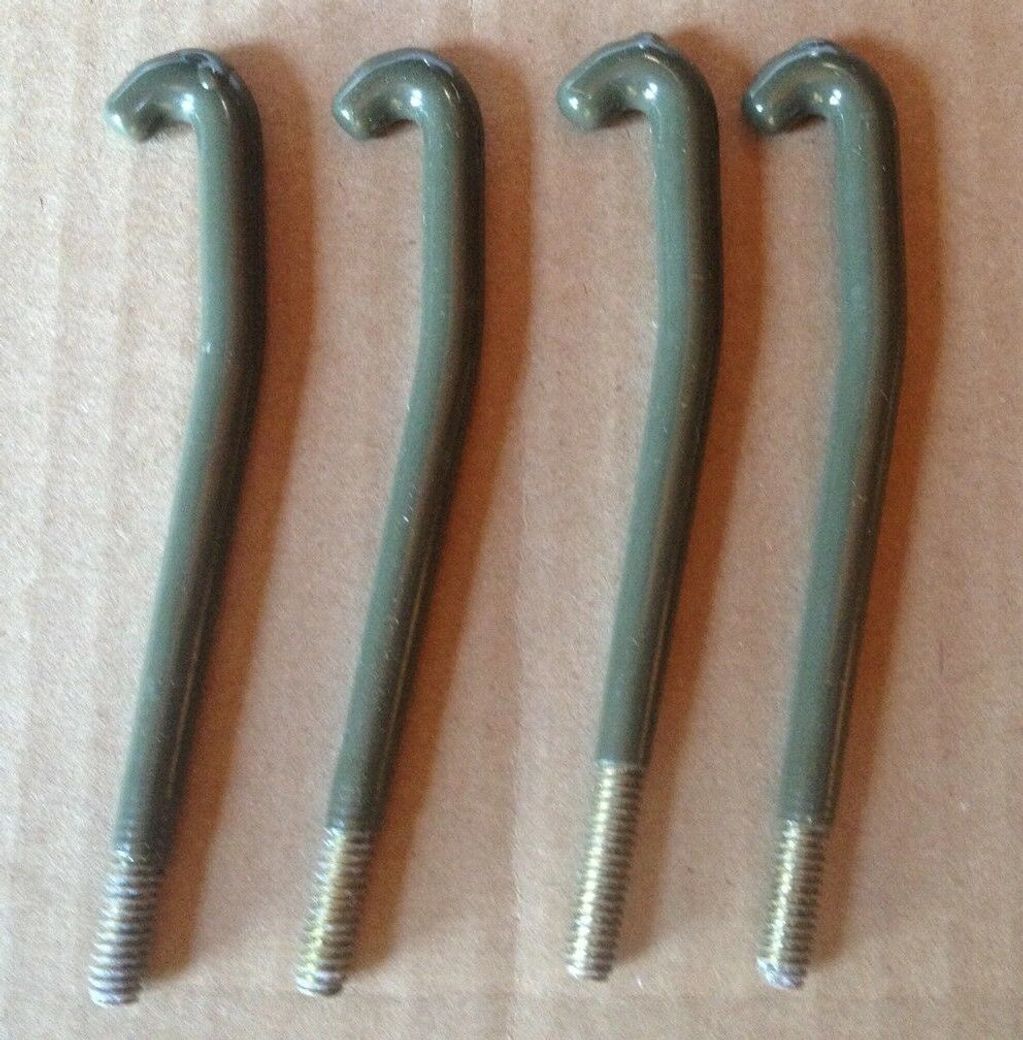

Battery retainer J Hooks 4 required.

NSN:

ORD: 8754863

Show More
