"Straight" M151 - 1960 to 1964

The details

In the future this space will go into great detail of the differences. It will also go into detail of when slight changes in the "straight" M151 (not A1 or A2) during its production run. There are quite a few things that changed in the early vehicles that will be very hard to detail as to when they changed. So if this feels unfinished.... You're right, it is.


The M151 had 2 different body manufactures (Ford & Fruehauf), and 3 complete vehicle manufacturers Ford, Willys Motors, & Kaiser Jeep Corp. Although Willys Motors & Kaiser Jeep Corp were the same company.  (In 1953, Kaiser Motors purchased Willys–Overland and changed the company's name to Willys Motor Company). You will find "straight" M151s with the above names listed as manufactures on the data plates.


Undercoat applied at factory


There are a few items that are M151 only (not found on the M151A1), and the vehicle having them or not having them will tell you what is correct or what you are looking at. Not all of these are M151 only. Some roll into the M151A1 also.


Top 3 quick M151 only things:

  1. Vehicle has no turn signals or mounting spots on the tops of the front fenders.
  2. Rear of the vehicle only has openings in the body for the two tail lights, NO provision for blackout marker above right rear taillight.
  3. Oval floor drains in driver & passenger floor

M151

  • Hood: 3 Ribs, Latch, fording
  • Hood Latches (with single finger pull)

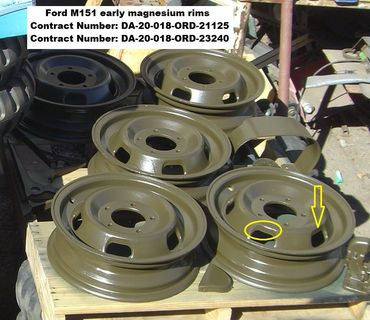

  • Rims - 2 different variations of the early magnesium rims (Ford contract vs Willys Kaiser)
  • Shovel holder (Body has 2 sheet metal rails to hold shovel handle head in place)
  • Footman loops (Bolted to body)
  • Grill bolts (4 bolts per side)
  • Gas can top strap holder (Body has stamped hole for top strap to go through)
  • Spare tire retainer (small round retainer with reflector bolted to it)
  • Windshield bumpers (2 U shaped brackets with cotton welting material)
  • Front bumper ("thinner" only as deep as the first set of bolts for the lifting brackets)
  • Rear floor ribs (center area behind driver & pass seat riveted in)
  • Hand brake (ratcheting hand brake with push button release)
  • Bellhousing (set up for starter detent adapter)

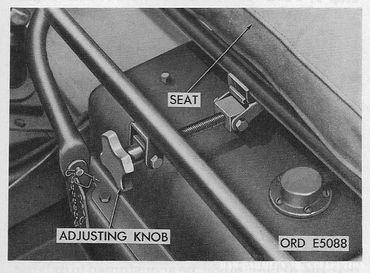

  • Front Seats (large adjustable screw for maximum adjustment forward & back)

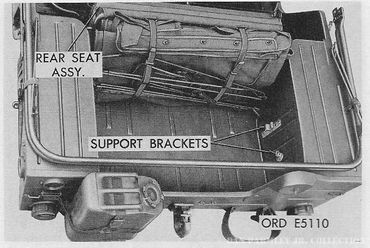

  • Rear Seat (has 4 footman loops welded to the base for top stowage)
  • Heater / Air vents (Dual air vents, both sides of the body on cowl)
  • Steering Knuckles & related Arm
  • Brake & Clutch Pedals
  • Gas Pedal (flat stamped steel)

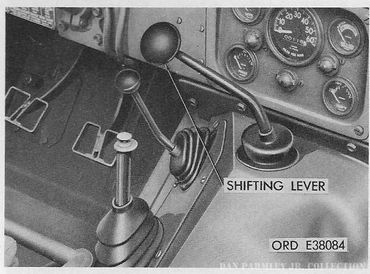

  • Shift knob
  • Air cleaner & pre cleaner (Flat top "No ribs for strength)
  • Drag link kit
  • Driveline U joints yoke (bolts are 12 sided bolts)

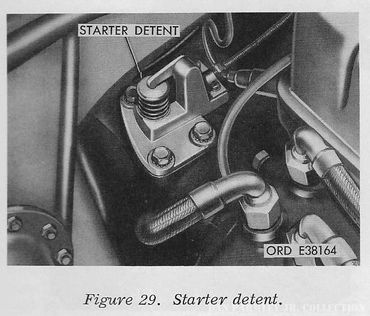

  • Starter detent (most have been removed, detent bracket usually remains on bell housing)
  • Top bow cross brace (Round with flip over stamped retainer)
  • Differential
  • Horn
  • Speedometer 90 degree drive on transfer case
  • Oil Drain Plug
  • Hub Cap is short dome

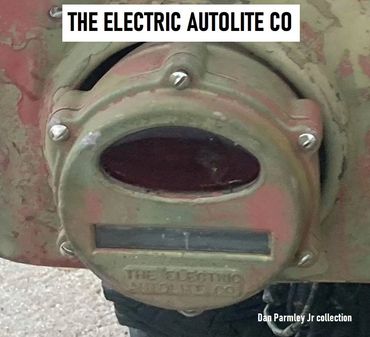

  • Auto Lite Electrical
  • Prestolite Electrical
  • Holley Carb. (All straight M151s had Holley carburetors)

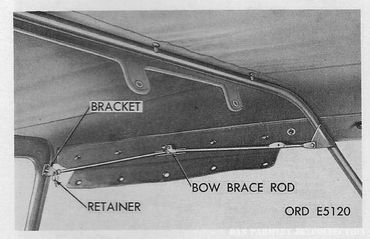

  • Round support rods from top bow to the windshield frame
  • Rear bumperettes larger and bracket riveted to top
  • Cowl vent factory installed
  • 2 cowl vents, not late M151s
  • No slave receptacle
  • Heater hot water assy was different

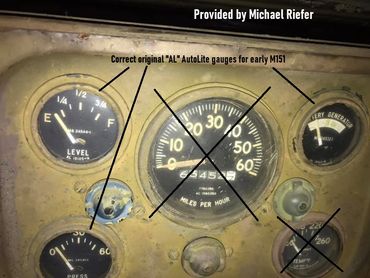

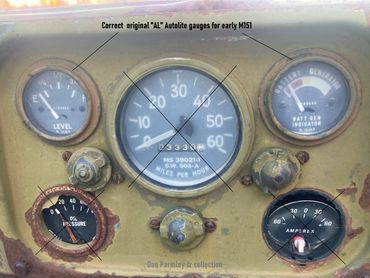

  • Very early - Autolite gauges and other electrical components
  • No rear view mirror
  • Single rubber bumpers suspension
  • Differentials
  • Wheel hubs
  • Clutch operating rod - Early
  • Riveted floor plate
  • Battery box cover has 4 hold down latches
  • Rear floor has separations in support indentations
  • 2 defroster vents, also sheet metal for these is not as long

"Straight" M151 - Branches of Service

Detail your services

If customers can’t find it, it doesn’t exist. Clearly list and describe the services you offer. Also, be sure to showcase a premium service.

Announce coming events

Having a big sale, on-site celebrity, or other event? Be sure to announce it so everybody knows and gets excited about it.

Display real testimonials

Are your customers raving about you on social media? Share their great stories to help turn potential customers into loyal ones.

Promote current deals

Running a holiday sale or weekly special? Definitely promote it here to get customers excited about getting a sweet deal.

Share the big news

Have you opened a new location, redesigned your shop, or added a new product or service? Don't keep it to yourself, let folks know.

Display their FAQs

Customers have questions, you have answers. Display the most frequently asked questions, so everybody benefits.

Photo Gallery

1st Contract M151 - Ford Motor Company - DA-20-018-ORD-21125

Details

Contract ran from 09/60 to 02/61

First vehicle delivered 09/15/65

Number of vehicles built = 4050

Build Location = Ford - Livonia, Michigan - Transmission Plant

Body manufacture = Unclear factual answer currently

Government cost = $2423.00 ea.   -   Ford cost to build $3205.00

Registration numbers assigned to this contract 2B6487 to 2C0537 (approximate)

Data Plate - 1st Contract M151 - Ford Motor Company - Contract # DA-20-018-ORD-21125
Generator gauge is wrong and NOT AL

2nd Contract - Ford Motor Company - DA-20-018-ORD-23240

Details

Contract ran from 02/61 to 06/62

First vehicle delivered = Unknown

Number of vehicles built = 13,126

Build Location = Ford - Livonia, Michigan - Transmission Plant

Body manufacture =

Engine manufacture =

Government cost = $3,550.00 ea.

Registration numbers assigned to this contract 2C0538 to 2D3664 (approximate)

3rd Contract - Willys Motors Inc - DA-33-019-ORD-3941

Details

Contract ran from 03/64 to 01/64

First vehicle delivered = Unknown

Number of vehicles built = 9,025

Build Location =

Body manufacture = Fruehauf

Engine manufacture =

Government cost = $2,780.00 ea.

Registration numbers assigned to this contract 2D3665 to 2E2690 (approximate)

4th Contract - Willys/Kaiser Jeep - DA-20-113-AMC-0846-(T)

Details

Contract ran from 01/64 to 06/64

First vehicle delivered = Unknown

Number of vehicles built = 9,600

Build Location =

Body manufacture = Fruehauf

Engine manufacture =

Government cost = $2,631.00 ea.

Registration numbers assigned to this contract 2E2691 to 2F8391 (approximate)

M-151 - February 1962

Modern Fire Extinguisher
Radio mount should have round hole for vent  (not lovers) and wire shock cushions.
antenna mount is 1980s version  See radio section in "kits" page for detail.
Spare tire retainer plate is late style.
BO light should be steel not plastic
Do not believe decontaminator correct for 1962. extra guards on RT524 I believe to be post Vietnam
NO windshield washer pre 1970, secondary switch under ON/OFF is???
The tankers dome light is incorrect a factory restoration, Gauges should all be Stewart Warner
Show More

M-151 - March 1961

The lines should not be copper, and it should have the 25A generator & voltage regulator.
The lines should not be copper.
This is not an original data plate
