M151 Communication Installation Kits as of June 1967
This list was published June 1967
Radio or Communication Set Installation Kit NSN
AN/GRC-3 thru 8 5820-00-752-5999
AN/GRC-19 5820-00-752-6024
AN/GRC-87 5820-00-752-6029
AN/GRC-106 5820-00-082-3475
AN/GRR-5 5820-00-752-6031
AN/PRC-8 thru 10 5820-00-752-6026
AN/PRC-25 5820-00-889-4043
AN/VRC-6 5820-00-752-6111
AN/VRC-7 5820-00-752-6033
AN/VRC-8 thru 10 5820-00-752-6025
AN/VRC-12 5820-00-892-3347
AN/VRC-16 thru 18 5820-00-752-6028
AN/VRC-19 5820-00-752-6112
AN/VRC-24 5820-00-752-6027
AN/VRC-34 5820-00-752-6029
AN/VRC-35 5820-00-752-6032
AN/VRC-38 5820-00-752-6139
AN/VRC-43 5820-00-892-3348
AN/VRC-44 5820-00-892-3349
AN/VRC-46 & 53 5820-00-892-0992
AN/VRC-47 5820-00-892-0993
AN/VRC-48 5820-00-892-3386
AN/VRC-49 5820-00-892-0994
AN/VRC-54 5820-00-889-4038
AN/VRC-55 5820-00-889-3389
AN/VRQ-1 thru 3 5820-00-752-5999
R-108 thru 110 5820-00-752-6113
There are many more kits designed and put into the system after 1967. So do not take this as a "complete" list. Also many of the above had the part numbers changed as time went on.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:400,cg:true)

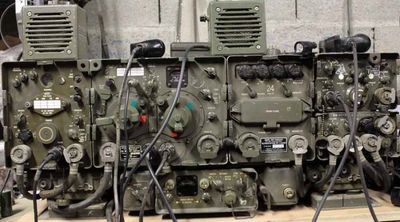

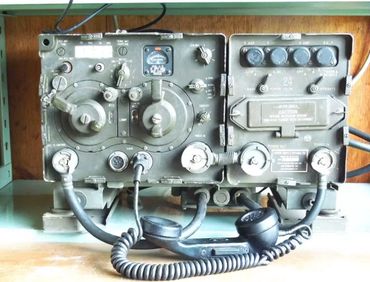

Early Radio Sets
Additional Information

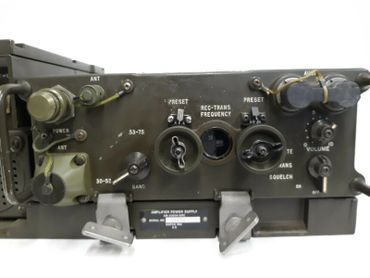

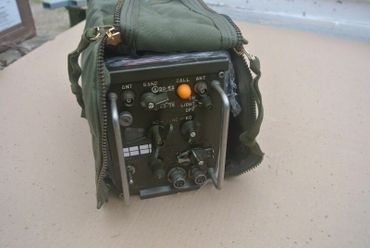

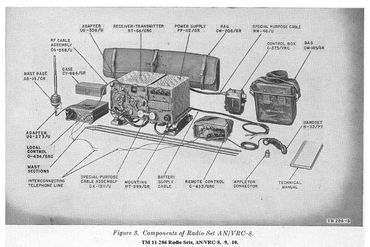

Mount MT-299 - AN/VRC-8 = RT-66, PP-112
AN/VRC-9 = RT-67, PP-112
AN/VRC-10 = RT-68, PP-112
Mount MT-327 - AN/VRC-8 = RT-66, PP-112, R-108
AN/VRC-9 = RT-67, PP-112, R-108
AN/VRC-10 = RT-68, PP-112, R-108
Mount MT-297 - AN/VRC-8 = RT-66, PP-112, R-108, RT-70, AM-65
AN/VRC-9 = RT-67, PP-112, R-108, RT-70, AM-65
AN/VRC-10 = RT-68, PP-112, R-108, RT-70, AM-65
Standard vehicle mounted radios from 1965 to the 1990s

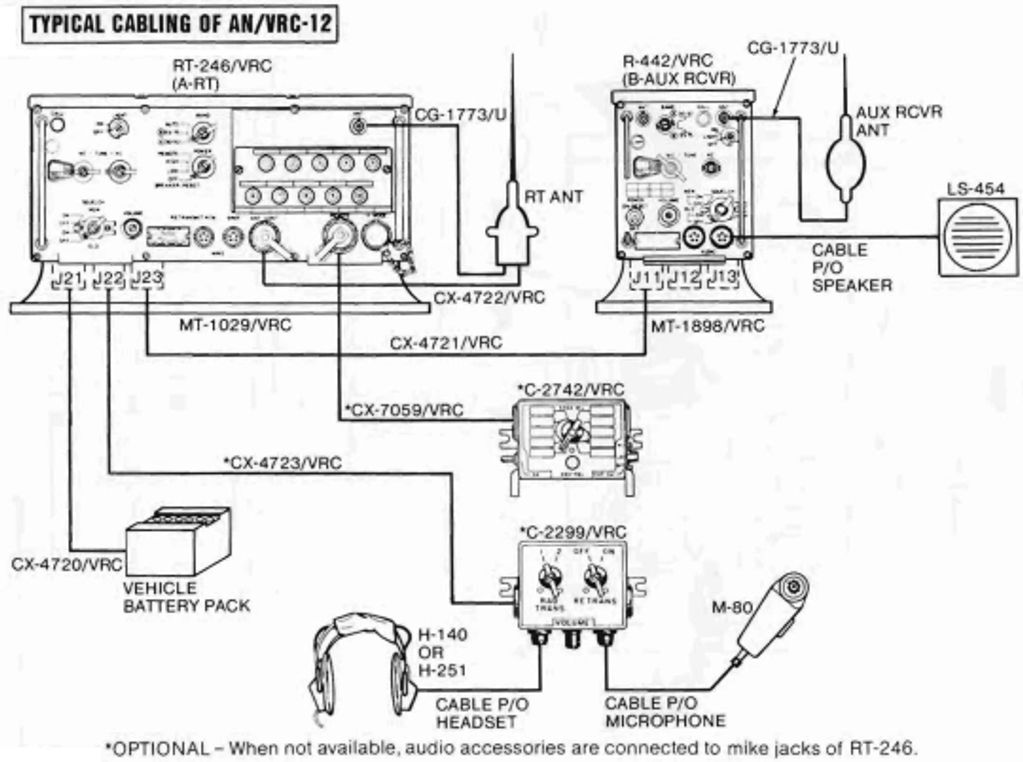

Radio Set AN/VRC-12
(NSN 5820-00-223-7412)

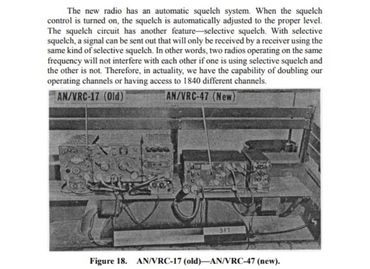

Radio Set AN/VRC-43
(NSN 5820-00-223-7415)

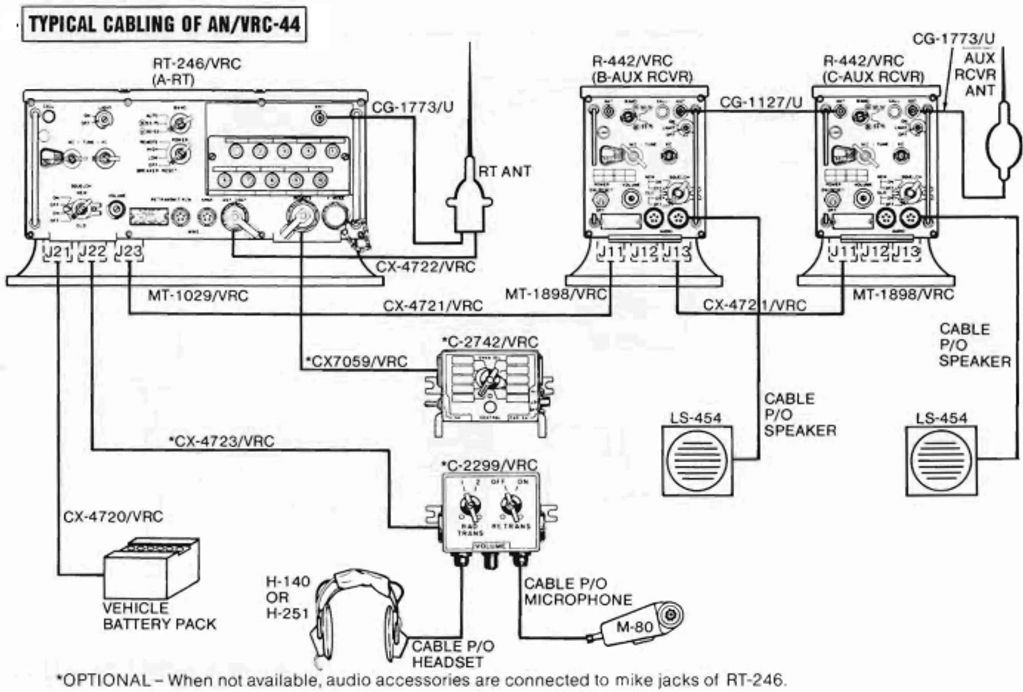

Radio Set AN/VRC-44
(NSN 5820-00-223-7417)

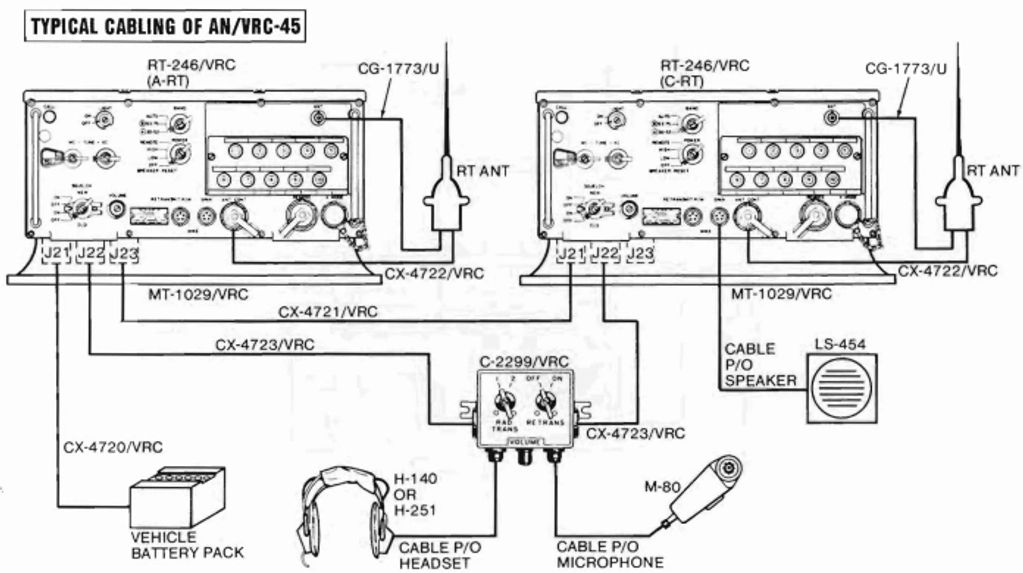

Radio Set AN/VRC-45
(NSN 5820-00-223-7418)

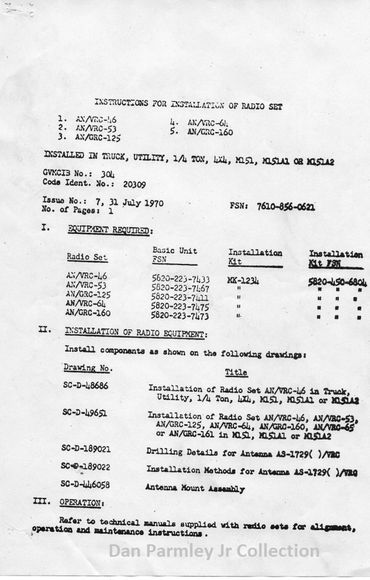

Radio Set AN/VRC-46
(NSN 5820-00-223-7433)

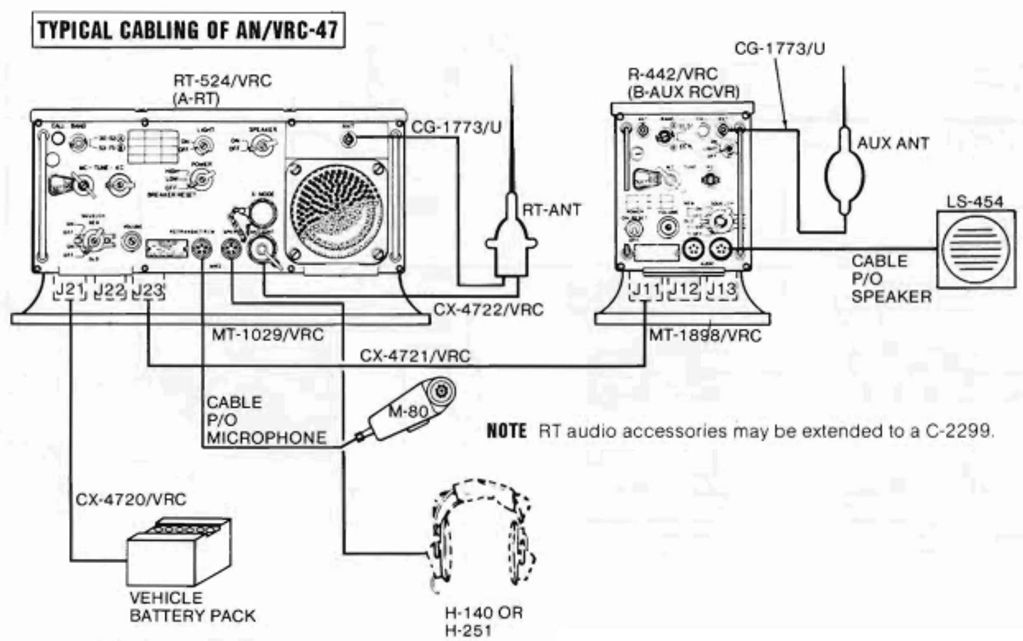

Radio Set AN/VRC-47
(NSN 5820-00-223-7434)
Show More

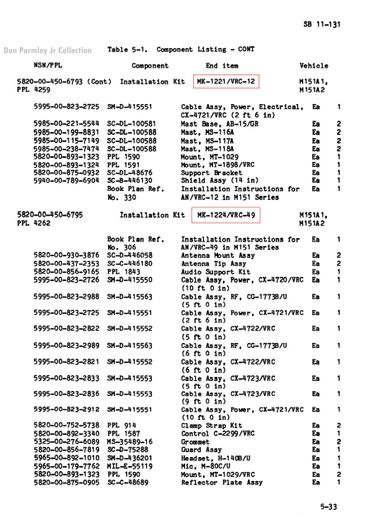

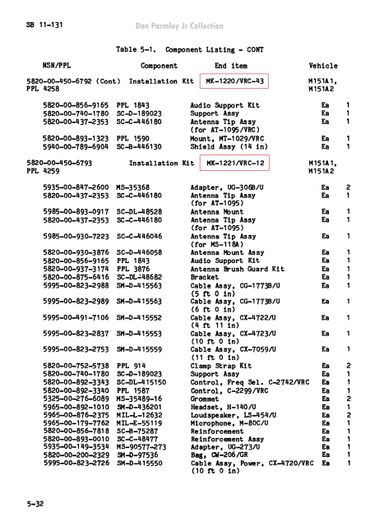

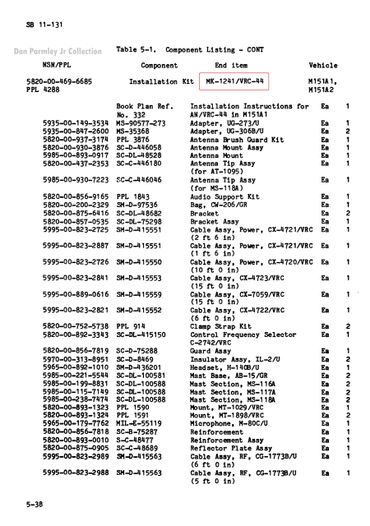

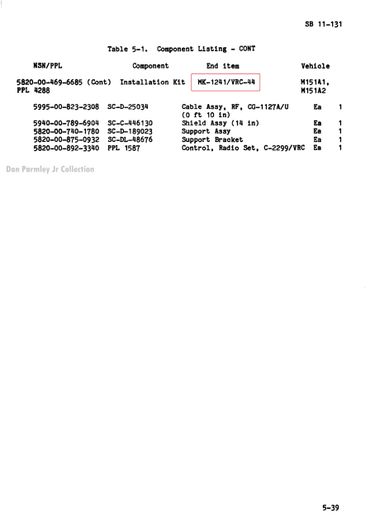

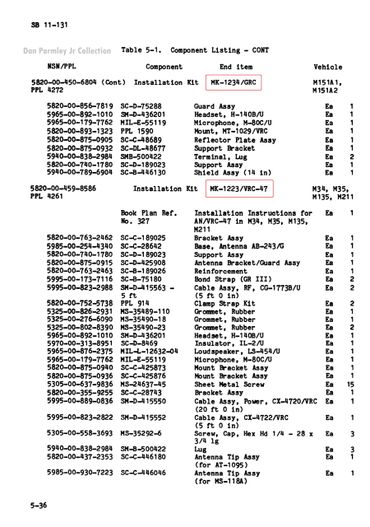

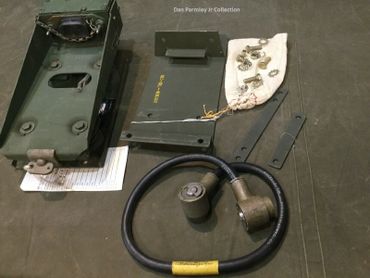

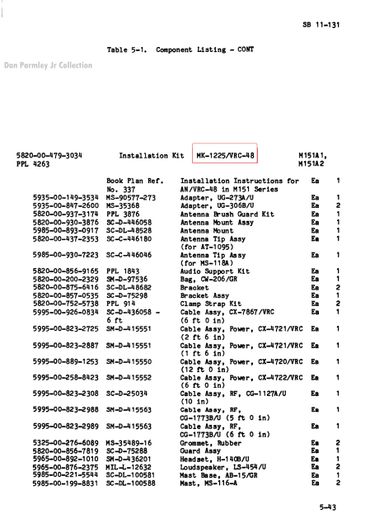

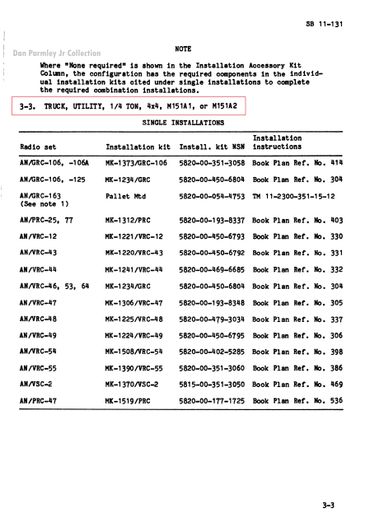

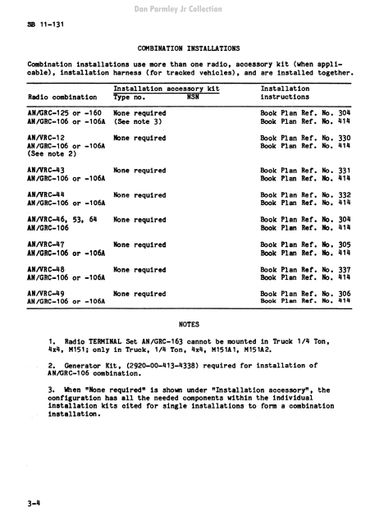

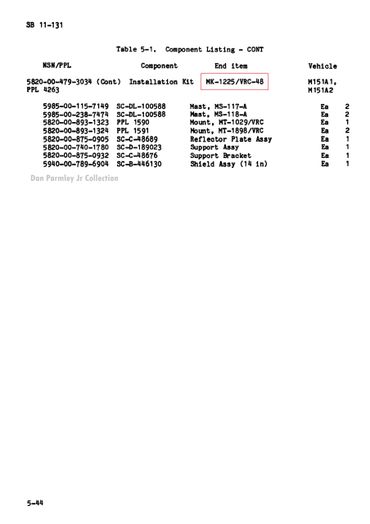

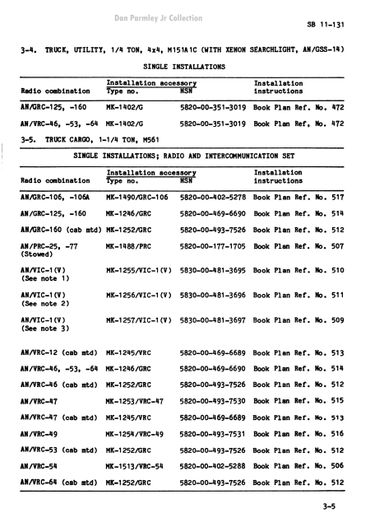

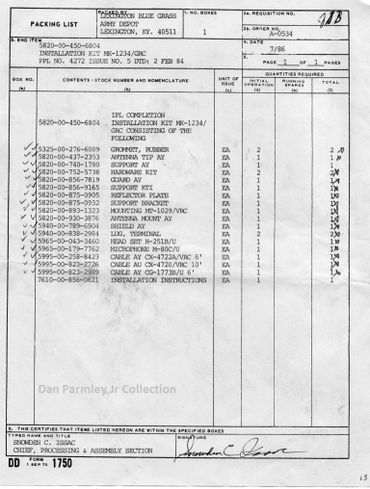

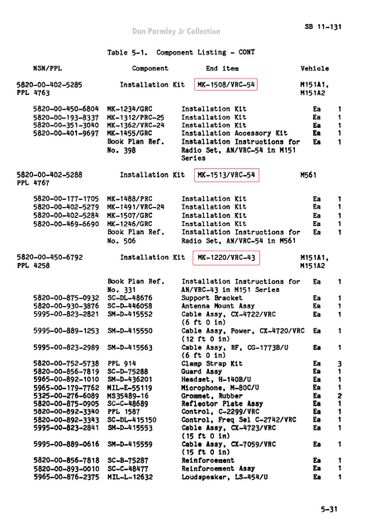

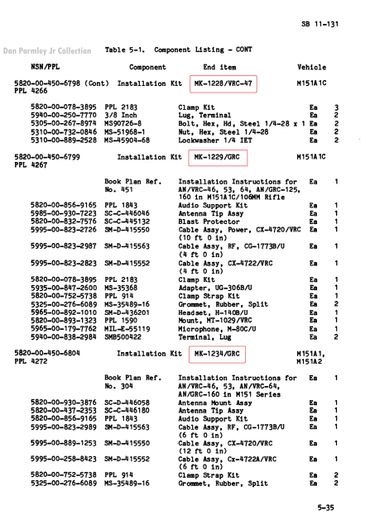

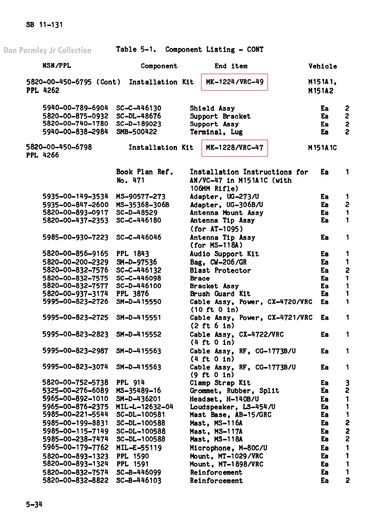

M151 Radio Kits & Contents by MK number

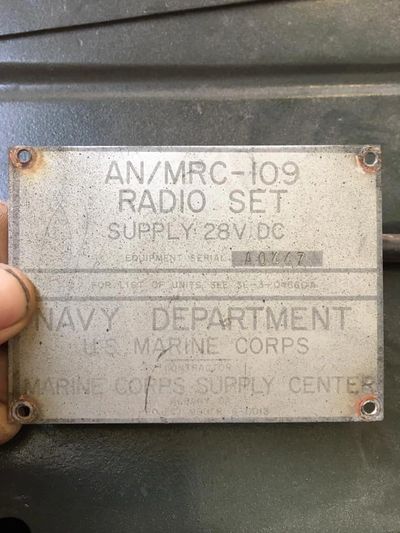

AN/MRC-109 & 110
USMC Radio Sets - That are simply an AN/VRC-46 & 47
AN/MRC-109 is the same components as the AN/VRC-47

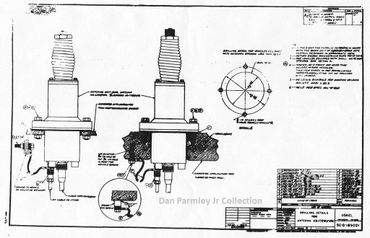

- Antenna AS-1729/VRC
- Receiver Radio R-442

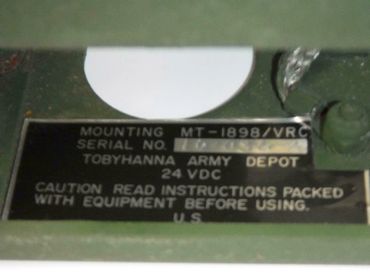

- Radio mount MT-1898

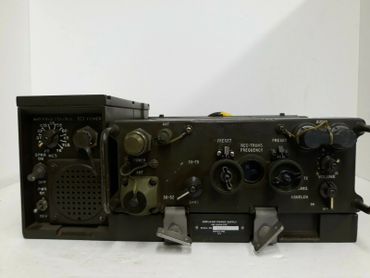

- Receiver-Transmitter RT-524

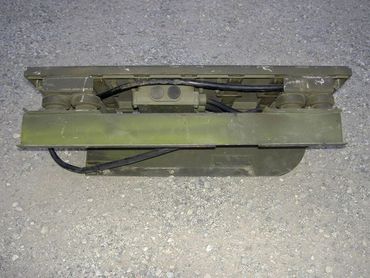

- Radio Mount MT-1029
- Coder- Decoder KY-38
- Handset H-189
- Headset H-140
- Loudspeaker LS-454
- Microphone M-80
- Plus related cables, brackets, bolts, etc...& "Junction box assy AN/MRC-109"

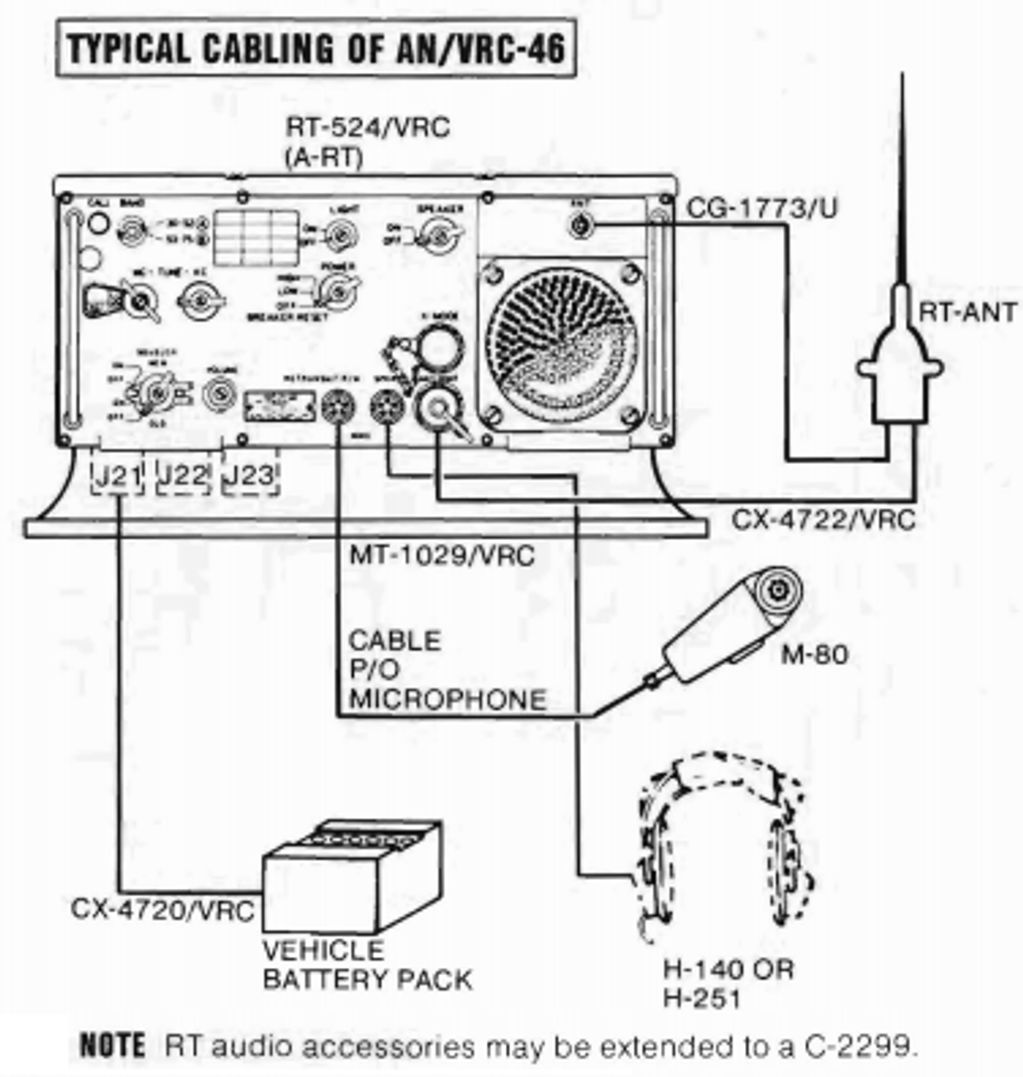

AN/MRC-110 is the same components as the AN/VRC-46
- Same as above - Minus R-442 and related components

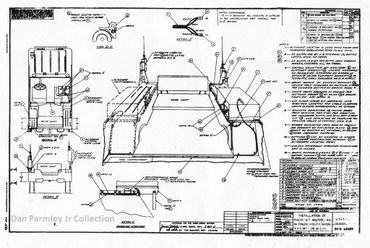

The original USMC manuals show an fairly large extra box (junction box) on the drivers side fender across from the radio on the passenger side. Also on an example I own (09-1965), the battery box contains a special power junction box and power cable assy. I believe all these "extra" components were on the early M151A1s using the "new" RT-524s & R-442s only.

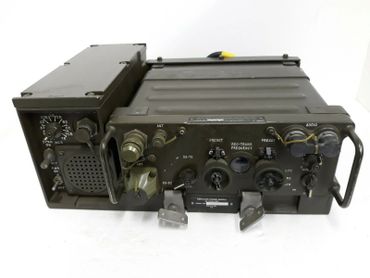

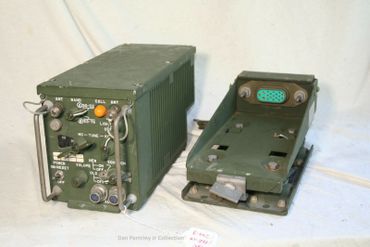

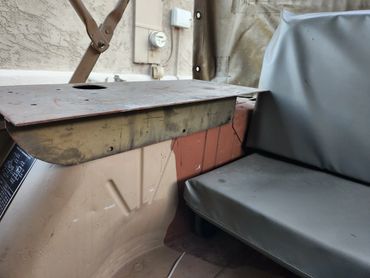

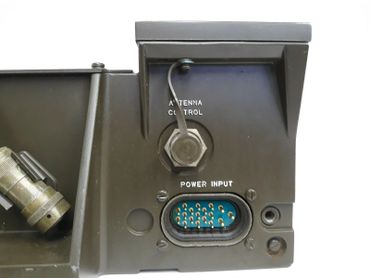

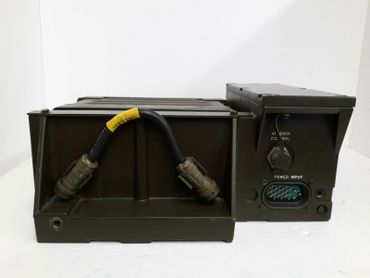

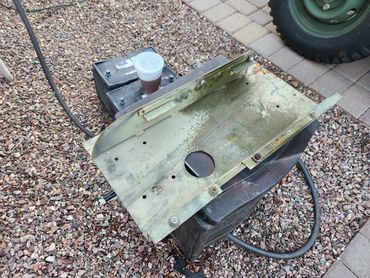

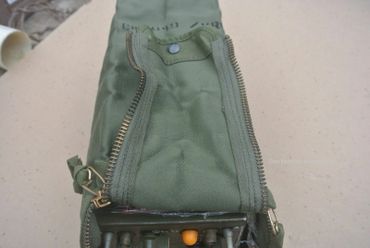

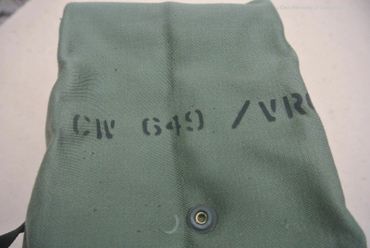

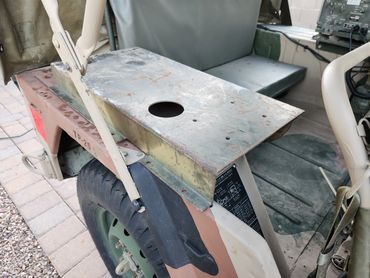

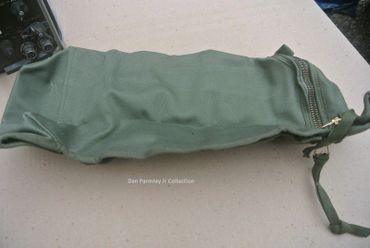

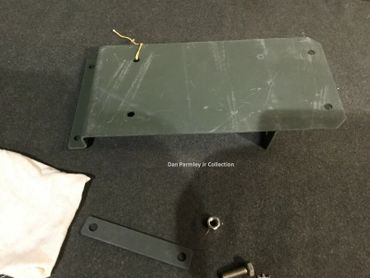

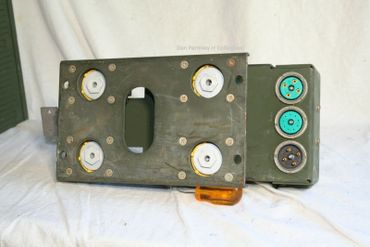

RT-524 & 246 (Receiver Transmitter) - MT-1029 (Mount) - CW 649 (Cover) - SC-DL-48677 (Bracket/Sponson)

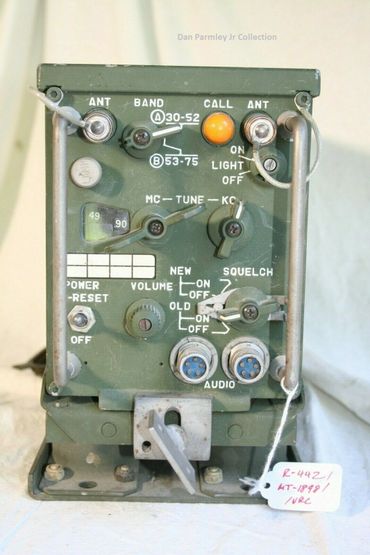

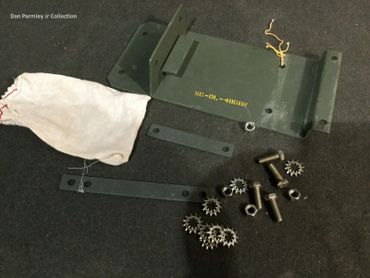

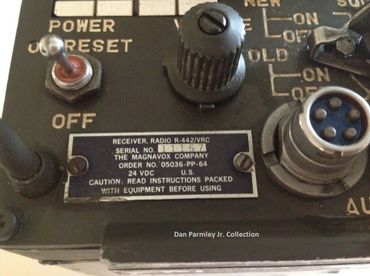

R-442 (Receiver) - MT-1829 (Mount) - CW 649 (Cover) - SC-DL-48682 (Bracket)

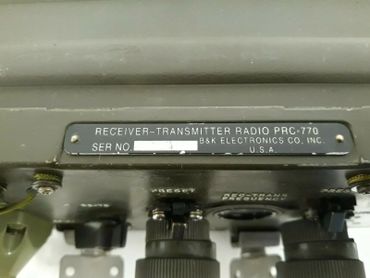

AM-2060 (Amplifier) - PRC-25 (Backpack Radio) - PRC-77 (Backpack Radio)
