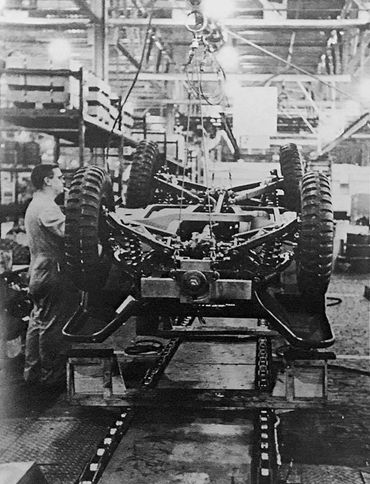

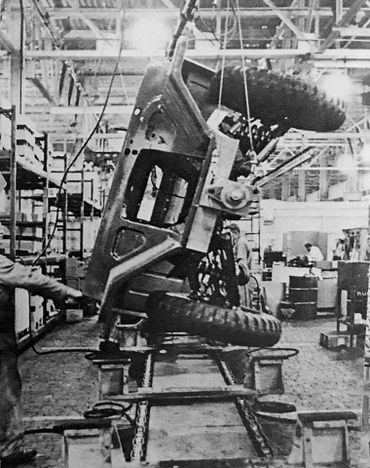

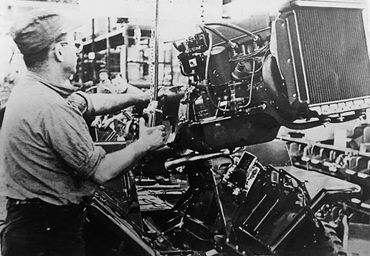

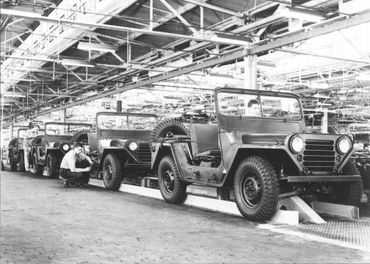

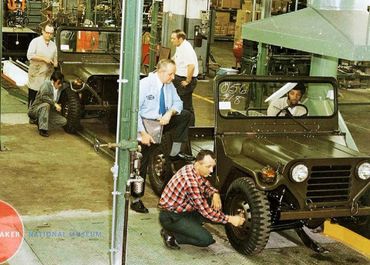

Factory:

Pictures and information about the Factories where the vehicles were made. Before being released to the government.

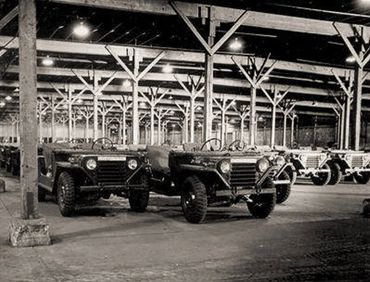

Depot Unissued:

Pictures of new vehicles in storage, and the stories behind the pictures

Future Information

Future Information

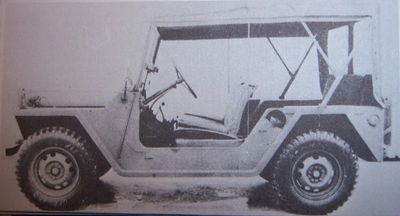

The XM151E3 appears to be generally identical to the E1 model, but it has an aluminum body. The E2 weighted 2,000 pounds empts and could carry 800 lbs of payload. Same dimensions as a normal M151. Tires were 7.10x15s

Reports:

· DEVELOPMENT  OF 1/4-TON 4x4 UTILITY TRICK, M151 SERIES (Technical Information Report, 1958)

Confirmed information:

· Ordered to be manufactured in 1956, total two trucks

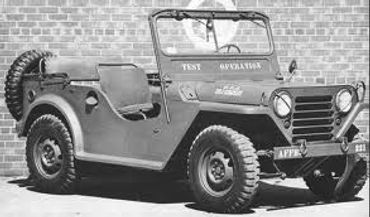

· The two XM151E2 trucks were delivered in July 1957 and were scheduled for testing at APG and Fort Knox

· During tests re-designated as M151E2

· The final APG report on the M151E2, issued in February 1958 mentioned many fracture failures to the aluminum body, and it had been considered unsatisfactory

Not verified information:

· Unknown number of additional XM151E2 trucks bodies were manufactured, had welded aluminum gusseted reinforcements in all of the listed failure areas (Ford Archives testing report)

· Possible testing of XM151E2 truck by USMC

Thank you for any information posted here, or trough PM or email.

Information Provided by: JAROSLAV
